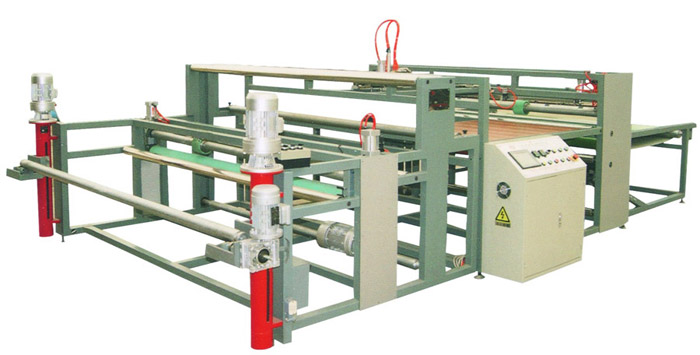

container cylinder unit is mainly used for large cloth, pieces of cloth cut, maximum cutting width of 2300mm. because the unit is stupid hot knife cut cloth does not appear after cutting loose wire, wire run phenomenon. easy and convenient operation, this unit have a precise electronic control system, the user can set the working length according to their needs.
technical parameters:
|
type |
1m-2300 |
3m-1500 |
|
cloth roll diameter |
1200mm |
1200mm |
|
cloth roll width |
2300mm |
1500mm |
|
cheb type |
level |
level |
|
cross |
cross |
|
|
tangentially |
tangentially |
|
|
cloth width |
level500-2300mm |
level500-1500mm |
|
cross200-600mm |
cross200-600mm |
|
|
tangentially200-590mm |
tangentially200-590mm |
|
|
cheb speed (production speed) |
10-20pcs/min |
10-20pcs/min |
|
accuracy |
±1% |
±1% |
|
main motor power |
1.1kw×2 |
1.1kw×2 |
|
gas source |
0.6mpa |
0.6mpa |
|
total power |
9kw |
8kw |
|
size |
7×2.8×1.4m |
7×1.8×1.4m |
