moved picture on your mouse, magnifying the effect of visible product

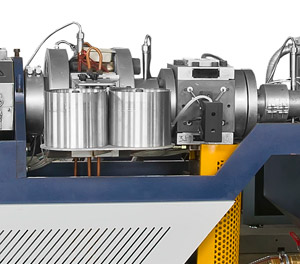

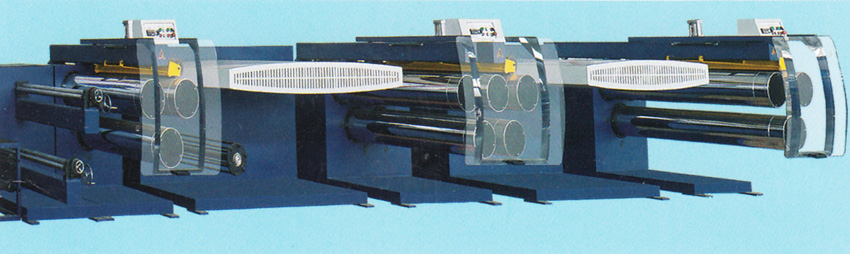

sjpl-s plastic extrusion flat film double-die stretching line is specially designed for pp and hdpe with high quality and excellent performance.
perfect tape quality lowest consumption best economic benefit

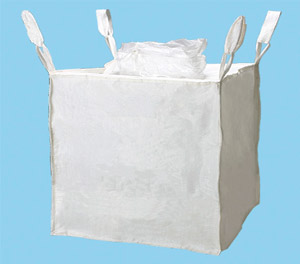

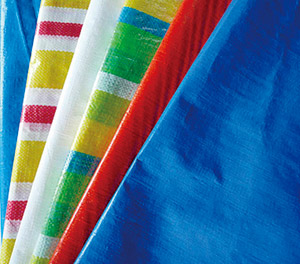

available: woven sack chemical bag foods bag cement bag leno bag jumbo bag geo textile tarpaulin
 |
 |
 |
technical parameters:
|
item |
sjpl-90×33-700/1100 |
sjpl-100×33-900/1300 |
sjpl-110×33-1100/1350 |
sjpl-120×33-1200/1500 |
|
max.extrusion volume |
170kg/h |
250 kg/h |
330kg/h |
400 kg/h |
|
screw dia |
90mm |
100mm |
110mm |
120mm |
|
ratio of l/d |
33:1 |
33:1 |
33:1 |
33:1 |
|
rotate speed of screw |
20-120r/min |
|||
|
length of mold lip |
700/1100mm |
900/1330mm |
1000/1350mm |
1200/1500mm |
|
line speed |
230m/min |
|||
|
flat yarn fibre scope |
60-230tex |
|||
|
drawing ratio |
4-10 |
|||
|
winder |
136 spindles |
184 spindles |
212 spindles |
240 spindles |
specification and dimensions are subject to change without prior notice.
