plastic extrusion flat film stretching line
plastic extrusion flat film stretching line

moved picture on your mouse, magnifying the effect of visible product

features:
  1 .electrical control unit: adopt the european famous-brand processor control (pc) to monitor and control the whole line centrally and fully,

bring the easier operation and more stability. (option)
  2. slitting unit: adopt thenew-typeadjustable strucure, prolong the blade using time.
  3. integrated holding unit: renew the previous film take-off and holding structure, meet the higher line speed requirement.
  4.electric component unit: adopt world-famous brand product with international guarantee.
  5. apple to produce the pp, hdpe normal tape, fibrillated tape, folded tape and some other flat-type tape with various specifications.



high speed tape stretching line:

material loading●

hot air oven,length 6 m○

auto vacuum material-feeding loader●

film take-off●

melt pump○

with multi drives and moisture absorption unit●

automatic filter●

static mixer○

flat die●

screw type loader/mixing unit○
 gravvimetric dosing/mixing unit○

water quench tank●

flat tape fibrilator unit○

slitting unit●

flat tape fibrilator unit

integrated holding unit●

film thickness gauge and control system○

edge trim recycle and reefed system●

industrial process computer/eurpe○

stretching section with 6 godets, incl.heating unit●

multi stretching and annealing section○

vacuum tape extraction incl.collection box●



standard● option○

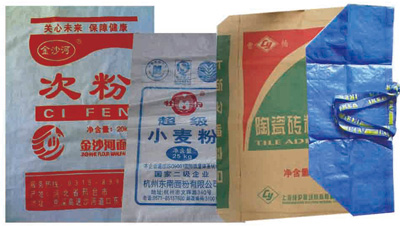

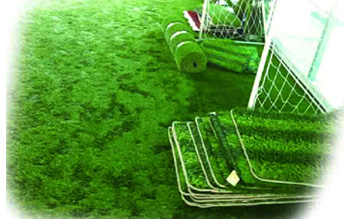

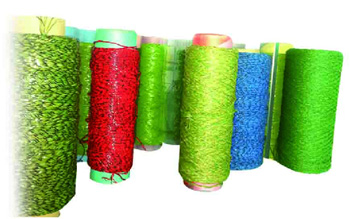

finished case:

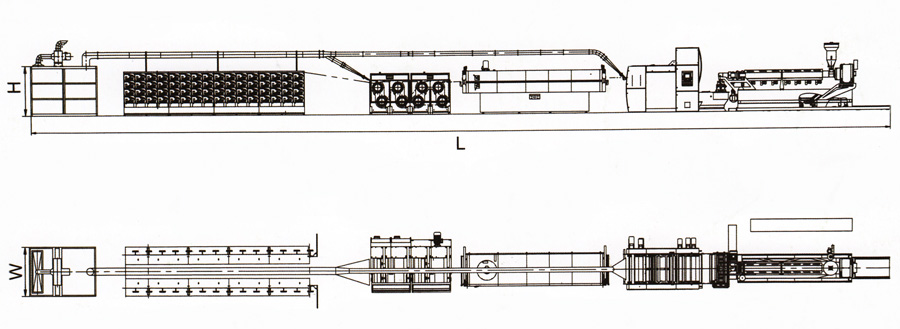

product structure diagram:

technical parameters:

item

sjpl-g100×33-800

sjpl-g110×33-1100

sjpl-g120×33-1300

sjpl-g130×33-1500

max.extrusion volume

330kg/h

400kg/h

500kg/h

600kg/h

screw dia

φ100mm

φ110mm

φ120mm

φ130mm

ratio of l/d

33:1

33:1

33:1

33:1

rotate speed of screw

20-120r/min

length of mold lip

800mm

1100mm

1300mm

1500mm

max.production speed

450m/min

flat yarm fibre scope

60-200tex

drwing of winde

4-10

winding number

132spindles

180spindles

216spindles

252spindles

specification and dimensions are subject to change without prior notice.
