plastic extrusion monofilament manuf acturing machine
plastic extrusion monofilament manuf acturing machine

moved picture on your mouse, magnifying the effect of visible product

  syl serial plastic round yarn machine is researched and made by adopting advanced technologies such as plc program control and frequency-converted speed regulation on the basis to import and absorb germanic
advanced technology. main electrical components are foreign top-quality products. the feed cylinder and the screw of extruder are especially processed by 38 crmoala top quality steel material. the cold and hot water tanks are also made of top-qualitystainless steel. the 7-roller draw machine is gearbox style. the drawing and shaping of monofilament are all equipped with foreign advanced level. with the advantgaes of rapid speed, high production, low energy consumption, good quality of monofilament shaping, the machine has compact structure,easy operation and being safe and reliable.
  this machine can be widely used for manufacture all kinds of round yarn with the materals of thermoplastics, such as polypropylene(pp), high density polyester(hdpe), polyester chip(pet),nylon (pa6, pa66)etc. and also the machine is mainly used for manufacturing of zipper monofilament,industry mesh fibre, polyester tyre cord, fishing net monofilament, nylon fishing line, gill net monofilament,safeguard net monofilament, sporting net monofilament, sunshade net monofilament and filter net monofilament,etc.

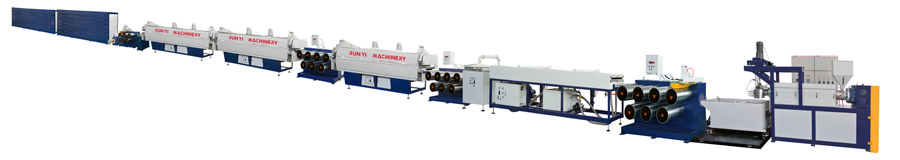

pe pp pa low-denier monofilament extrusion machine  pe pp pa low-denier monofilament extrusion machine

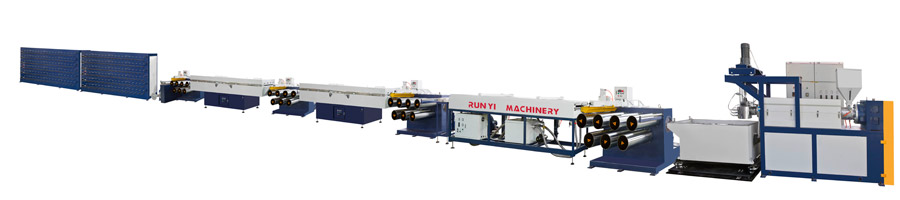

pp pe pa pet monofilament extrusion machine for nets  pp pe pa pet monofilament extrusion machine for nets

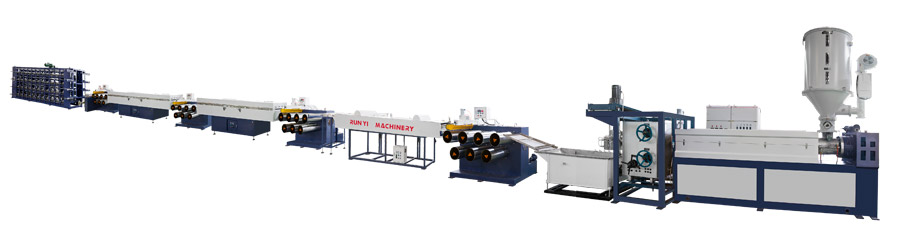

pet high-denier monofilament extrusion machine pet high-denier monofilament extrusion machine



finished case:


technical parameters:

type


monofilament manufacturing machine for rope&nets



nylon monofilament manufacturing machine

monofilament manufacturing machine for zipper

monofilament manufacturing machine for industrial nets

  syl-m70x30-450 syl-m65x 30-580 syl-m65x 30-450 syl-l90x30-580 syl-z65x28-750

item

parameter

extruder



a)raw material:pp.pe

a)raw material:pa

a)raw material:pet

a)使用原料:pet

b)dia.of monfilament:φ0.12-0.3mm

b)dia.of monfilament:φ0.18-0.35mm

b)dia.of monfilament:φ0.40-1.2mm

b)dia.of monfilament:φ0.15-0.35mm

dia of screw

φ 70mm

φ 65mm

φ90mm

φ 65mm

ratio of l/d

30:1

30:1

30:1

30:1

material of screw and cylinder

38crmoaia

38crmoaia

38crmoaia

38crmoaia

rotate speed of screw

25-100rpm

25-100rpm

25-100rpm

25-100rpm

spinning die

1set

2set

2set

2set

number o holes

150pcs 180pcs

120pcs

150pcs

60 pcs

120 pcs (60pcs x2)

stretching unit

single stretching unit







shapping unit

optional device

single shaping unit



single shaping unit

winder

156spindle 192spindle

132spindle

156spindle

66spindle

128spindle

winding size and type

φ0 46x500mm,olivary form(optional)





system capacity(about)

57kw

194kw

210kw

265kw

350kw

overall size(l×w×h)

23000x1900x1850mm

40200x2300 x1970 mm

42300x2420 x1970

46000x2500x2300mm

52000x3800x2400mm

weight

15t

28t

29t

32t

36t

specification and dimensions are subject to change without prior notice.
