ry serial plastic monofilament manufacturing machine
ry serial plastic monofilament manufacturing machine

moved picture on your mouse, magnifying the effect of visible product

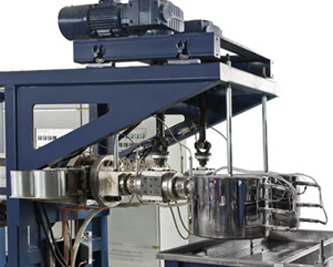

  ry serial plastic monofilament manufacturing machine is researched and made by adopting advanced technologies such as plc program control and frequency-converted speed regulation on the basis to import and absorb germanic advanced technonolgy. main electrical components are foreign top-quality products.the feed cylinder and the screw of extruder are especially processed by 38crmoala top quality steel material. the cold and hot water tanks are also made of top-quality stainless steel. stretching hot air oven adopt advance overflow-type, yarn shaping unit use foreign advanced hot air oven, so that the main technical criteria of this machine can, reach up to international advanced level. with the advantages of rapid speed,high production, low energy consupption, good quality of monofilament shaping, the machine has compact structure, easy operation and being safe andl reliable.




technical parameters:

item

ry-ds70×33-450

ry-ss70×33-450

ry-sm90×33-1000

raw material

pp、llhdpe

pp、llhdpe

pp、llhdpe

screw dia

φ70mm

φ70mm×2

φ90mm

ratio of l/d

33:1

33:1

33:1

material of screw and cylingder

38crmoia

38crmoia

38crmoia

rotate speed of screw

25-100rpm

25-100rpm

25-100rpm

meltpump

1set

2set

2set

spinneret

1set

2set

2set

holes

96 holes

96holes×2

96 holes×2

stretching

1set

1set

1set

shaping unit

1set or 2sets

1set or 2sets

1set or 2sets

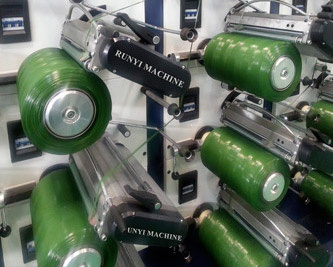

winder

24spindle

               48spindle

48spindle

winding type

according to customers' requiments

according to customers' requiments

according to customers' requiments

sysyem capacity(about)

300kw

380kw

380kw

overall size (l×w×h)

42000×4500×3000mm

43000×4500×3000mm

43000×6500×3000mm

total weight(about)

28t

32t

32t


specification and dimensions are subject to change without prior notice.
